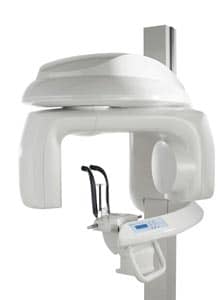

PracticeWorks Systems LLC, Atlanta, introduces the KODAK 9500 cone beam 3D system for 3D imaging of dental and facial anatomy. The KODAK 9500 3D System enables dental professionals to produce 3D images ranging from dual jaw to full craniofacial images.
The system delivers anatomically correct 3D images down to 0.2 mm voxel size, and provides features such as face-to-face patient positioning to accommodate standing or seated patients—including wheelchair patients—of varying body types and sizes. Program selection with preprogrammed settings occurs directly on the system’s intuitive interface, simplifying patient setup and exam preparation.
The system also provides full-featured 3D visualization software, which includes an implant planning/simulation module and an implant library. Image output occurs in DICOM formats, supporting flexible output options including printing and customizable report templates.
The KODAK 9500 3D System captures dual jaw (9 cm x 15 cm) or all dento-maxillofacial anatomy (18.4 cm x 20.6 cm) in one acquisition for a wide range of clinical applications. With the additional ability to control patient dose through variable settings of mA and kV, dental professionals can manage the patient dose by focusing on their immediate clinical needs. This enables users to maximize image detail required for the specific application while managing their patients’ dose.
